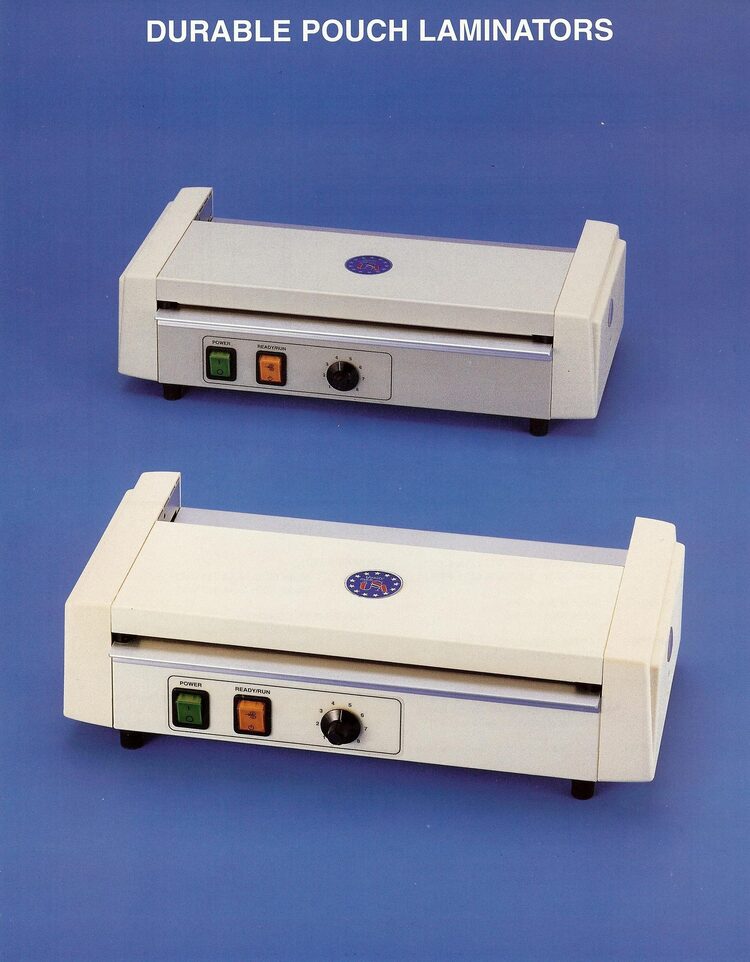

Models 6020-NC and 7020-NC are built for plants and safety departments that laminate every day: Q-Tag® lockout tags, photo ID tags, procedures, pipe markers, menus, and signs. A thermistor in the lower heater platen feeds a solid-state controller. Set the temperature with the front-panel knob (positions 1–8); a built-in thermometer is standard.
Separate illuminated POWER and READY/RUN switches provide a stand-by mode: keep the heaters at temperature and run the rollers only when a pouch is ready. The vinyl-clad steel chassis has molded side covers, molded silicone rollers, permanently lubricated sintered-bronze bearings, and a fan-cooled exit table with a finned aluminum heat sink.
Available in black, white, or grey with matching or contrasting side covers. Ask about factory calibration for your preferred film.
Related products: Q-Tag® Laminating Pouches · Paper Tags and Q-Tag® Inserts · DIY Photo ID Safety Tags · Laminating Pouch Tips
| Origin: | Made in USA |
| Model / Item Number: | DPL-6020NC; DPL-7020NC |
| Net Weight: | 6020-NC: 11 lb; 7020-NC: 13 lb |
| Maximum Entry Width: | 6020-NC: 9-13/16 in.; 7020-NC: 12-9/16 in. |
| Dimensions: | 6020-NC: 8.75 × 14.12 × 4.75 in.; 7020-NC: 8.75 × 16.62 × 4.75 in. |
| Speed: | 14 RPM / 32 in. per minute standard; 8 RPM or 5 RPM optional |
| Temperature Control: | Solid-state control with front-panel knob, positions 1–8 |
| Thermometer: | Standard |
| Best For: | 6020-NC: letter/legal documents, Q-Tag® pouches, signs; 7020-NC: chart-width material, menus, wide signs |
| Warranty: | Factory warranty against defects or wear-out; details on request |
| Electrical: | 6020-NC: 4.4 A, 115 VAC; 7020-NC: 5.4 A, 115 VAC |
The front-panel knob sets the operating temperature. The factory calibrates it for standard pouches and can calibrate a machine for a specified film.
Yes. POWER keeps the heaters on; READY/RUN starts the rollers when a pouch is ready.
Both models accept standard Q-Tag® pouches. Ask about a slower motor for extra dwell with heavier film.
A carrier is typically unnecessary for 5/2–5/2 (10 mil total) or thicker pouches. Use a carrier for thinner film.
